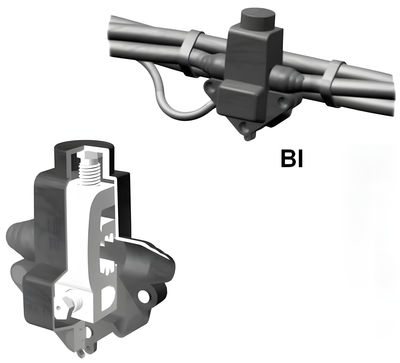

Tap Connectors for Insulated LV Networks
Technical features:
• Piercing type on the main cable (stripping on the tap)
• Shear head ensures precise tightening control on piercing side
• Elasticity of contact due to its C form.
• Hexagonal head screw M10.
• Tap holes filled with neutral grease having a very high melting point (150°C).
• Independent insulation cap ensures watertightness
• The top of insulating cap can only be closed after shearhead has been twisted off, allowing a visual control.
Technical specification:
TYPE | Ref EDF | Copper / Aluminium |
Main | Tap |
1 Deriv. | CPB1/CT25 | 10-25 mm² | (1,5-2,5 *) 16-25-35M mm² |
1 Deriv. | CPB1/CT70 | 35-70 –95mm² | 4 - 54 mm² |
2 Deriv. | CPB2/CT70 | 35-70 –95mm² | 2x 4-54 mm 2 |

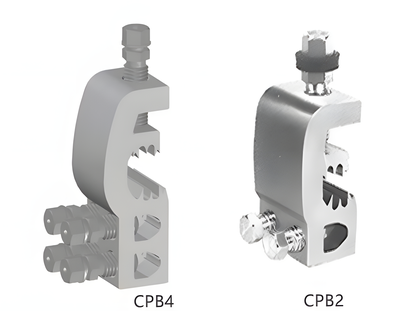

4 Deriv. | CPB4/CT70 | 16-150 mm² | 4x 2,5 -35M mm² |
1 Deriv. | CPB1/CT150 | 35-150 mm² | 6-95 mm² |
2 Deriv. | CPB2/CT150 | 35-150 mm² | 2x 6-50 mm² |
1 Deriv. | CDR/CT70 | 35-95 mm² | 16-70 mm² |
