Suspension clamp for self-supporting aerial bundled conductors

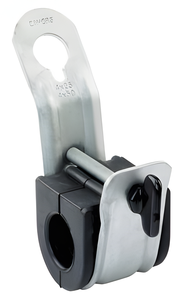

PST type
Suspension Clamp PS is used to receive LV ABC without insulated conductor from 10 to 150mm2.
Receiving is done via 2 or 4 conductors of LV ABC of dimensions from 10 to 150mm2. It is resistantto environmental
and mechanical effects since it is made of material of high tensile strength and stable structure, surface protected steel,
and elastomer resistant to UV radiation.
Suspension Clamp allows turning angle of 30°.
Material:
•Thermoplastic (resistant to bad weatherconditions) for the insulating packing and galvanized steel for
the metal parts andfastenings.
Technical specifications:

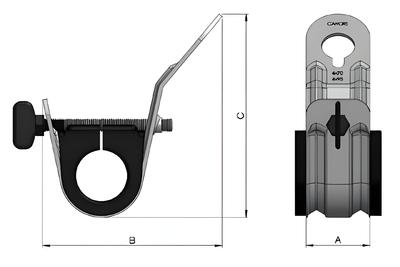

Designation | Cables Section (mm²) | A (mm) | B (mm) | C (mm) |
PST 25 | 2 x 16 / 4 x 25 | 30 | 100 | 95 |
PST 50 | 4 x 25 / 4 x 50 | 36 | 100 | 115 |
PST 70/95 | 4 x 70 / 4 x 95 | 40 | 115 | 130 |

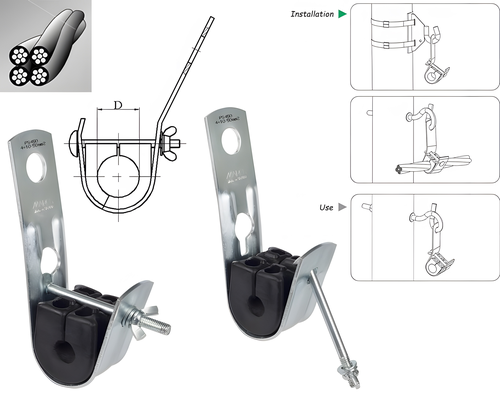

PS type
Technical specifications:
Designation | Cables Section (mm²) | D (mm) |
PS 116 | 4 x 10 - 16 | 14 |
PS 450 | 4 x 10 - 50 | 26 |
PS 495 | 4 x 50 - 95 | 32 |
PS 4150 | 4 x 120 - 150 | 44 |
