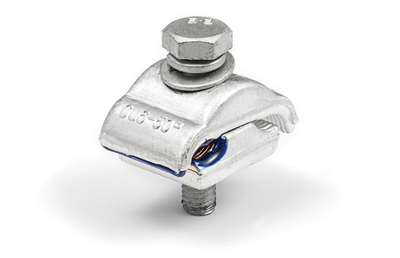

Parallel groove clamps
Adaptable to use as an oblique tap or parallel connector, the parallel groove clamp (PG Clamp) is designed to connect two conductors
in parallel and especially used to hold transmission conductors in parallel in transmission lines.
Made up of high-strength aluminium alloy bolts, the parallel groove clamps are designed to maintain high contact pressure during
cooling and heating cycles.
The 396.6, 395.5, and 490.0 are the rotational tightening method for clamp which provides accurate torquing.
The main feature of the parallel groove is its easy installation, simple structure and bolt-type power connector, which makes it a unique
product. For a reliable tightening, a spring washer and pressure pad are inserted under the bolt head of the clamp.
The upper and lower regions are the two parts of the connector while they have two parallel grooves to receive the aluminium clamps,
which are made out of high strength aluminium. In bimetallic clamps, the high strength electrolytic copper makes the copper clamp.
Features:
High corrosion resistance.
The hot-forged finish in aluminium alloy construction.
Nuts in hot-dip galvanized finished and washer supporter for corrosion protected.
Copper-based conductors.
Stainless steel based bolts.
Holding support of transmission conductors.
Technical specifications
For copper conductors
Reference | Conductors sizes (mm2) | Dimensions | Weight (Kg) |
L (mm) | Ø D (mm) |
U-bolt with spacer
CMUI 25-50 | 2x6 / 2x50 | 23 | 6 | 0,074 |
CMUI 95 | 2x10 / 2x95 | 24 | 0,099 |
|
|
|
|
|
Special U-bolt
A 92 LB | 2X6 / 2X50 | 23 | 5 | 0,069 |
A 93 LB | 2X16 / 2X75 | 24 | 0,091 |
|
|
|
|
|
For copper conductors
Reference | Conductor sizes (mm2) | Dimensions | Weight (Kg) |
L (mm) | Bolts (nb x Ø) |

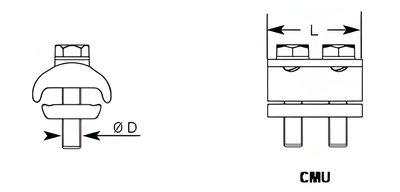

CMU 25 | 25 | 1x8 | 0,080 | CMU 25 |
CMU 50 | 40 | 2x8 | 0,145 | CMU 50 |
CMU 95 | 40 | 2x8 | 0,217 | CMU 95 |
|
|
|
|
|
Reference | Conductor range (mm2) | Dimensions (mm) | Weight / 100 sets (Kg) |
L | Ø |

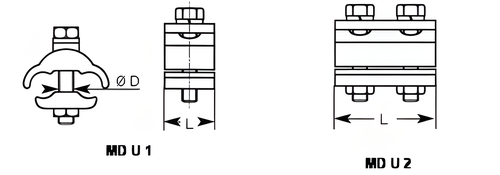

MD U 1 16 | 2,5-16 | 16 | 5 | 2,550 |
MD U 2 16 | 2,5-16 | 24 | 5 | 4,350 |
MD U 1 25 | 4-25 | 18 | 6 | 4,500 |
MD U 2 25 | 4-25 | 27 | 6 | 8,100 |
MD U 1 35 | 6-35 | 20 | 7 | 6,200 |
MD U 2 35 | 6-35 | 32 | 7 | 10,200 |
MD U 1 50 | 6-50 | 22 | 8 | 9,250 |
MD U 2 50 | 6-50 | 33 | 8 | 15,000 |
MD U 1 70 | 6-70 | 24 | 8 | 11,750 |
MD U 2 70 | 6-70 | 38 | 8 | 19,250 |
MD U 2 95 | 16-95 | 42 | 8 | 24,200 |
MD U 2 150 | 16-150 | 50 | 10 | 43,100 |
AAC, AAAC, ACSR and AACSR conductors
Reference | Conductor range (mm2) | Dimensions | Weight (Kg) |
L (mm) | Bolts (nb x Ø) |

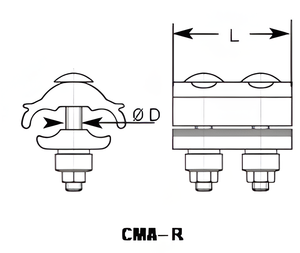

CMA 55 R | 16-54 | 35 | 1x8 | 0,087 |
CMA 95 R | 22-95 | 55 | 2x8 | 0,152 |
CMA 150 R | 34,4-150 | 60 | 2x8 | 0,201 |
|
|
|
|
|
Aluminium alloy
Reference | Conductors range (mm2) | Dimensions (mm) | Weight (Kg) |
L | Bolt(nb x ØD) |
MDA 3 150 | 25-150 | 92 | 3 x 10 | 0,335 |
MDA 2 185 | 35-185 | 65 | 2 x 10 | 0,281 |
MDA 3 185 | 35-185 | 98 | 3 x 10 | 0,421 |
MDA 2 240 | 70-240 | 70 | 2 x 10 | 0,450 |
MDA 3 240 | 70-240 | 105 | 3 x 10 | 0,672 |
|
|
|
|
|
Alu and copper conductors
Reference | Conductors range (mm2) | Dimensions | Weight (Kg) |
L (mm) | Bolt (nb x ØD) |
CM AU 55 50 | 16-70 alu/ 6-50 cu | 41 | 2x8 | 0,164 |
CM AU 150 95 | 25-150 alu/ 10-95 cu | 50 |
|
|
|
