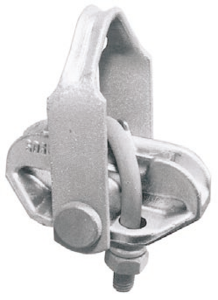

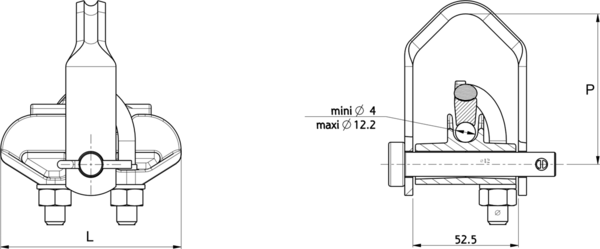

Suspension Clamps SL

Suspension clamps are used to hang conductors or ground wires to insulators or link fittings to tower arms and substation structures.

Suspension clamps are made of Aluminum Alloy or Malleable Iron materials with various types. Custom size and requirements are

available upon request. General Material-Body Aluminum Alloy, Steel Material-Bolt Galvanized Steel Anchor clips are used to secure

insulated mains with 4 wires to poles or insulated service lines with 2 or 4 wires ...

Descriptions:

The body and keepers of the suspension clamp are aluminium alloy,of which the cotter-pin is stainless steel and the other parts are

hot-dip galvanized steel.

Application:

The suspension clamp is mainly used to support, fix and connect bare wires, conductors and insulators to form a string, and also to

protect wires and insulators.

Structure features:

The suspension clamp can withstand the installation load of the conductor in the vertical span, and does not allow the clamp to slide

or separate from the insulator string when the line is in normal operation or when the line is broken. The pole tower using this clamp

has a large bearing pressure.

Technical specifications:

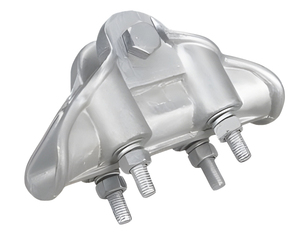

Suspension Clamps (Envelop Type)

The clamp body and pressing plate of the CGH aluminum alloy bag-type suspension clamp are made of high-strength aluminum

alloy, and have undergone a heat treatment process, which has no hysteresis effect and has energy-saving effects.

It is recommended to replace the high energy consumption XGU series malleable cast iron type suspension clamp.

Descriptions:

The body and keepers of the suspension clamp are aluminium alloy,of which the cotter-pin is stainless steel and the other parts are

hot-dip galvanized steel.

Application:

The suspension clamp is mainly used to support, fix and connect bare wires, conductors and insulators to form a string, and also to

protect wires and insulators.

Structure features:

The suspension clamp can withstand the installation load of the conductor in the vertical span, and does not allow the clamp to slide

or separate from the insulator string when the line is in normal operation or when the line is broken. The pole tower using this clamp

has a large bearing pressure.

Technical specifications:

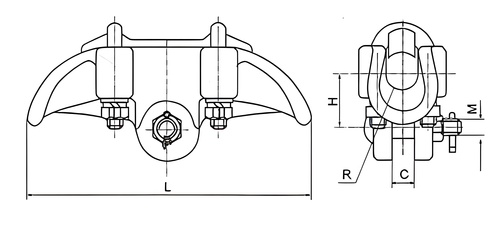

Suspension Clamps (carried-up Type)

Malleable cast iron and steel parts are hot-dip galvanized. The overhang angle of the overhang clamp is not less than 25 degrees,

and the radius of curvature is not less than 8 times that of the installed wire directly.

Technical specifications:

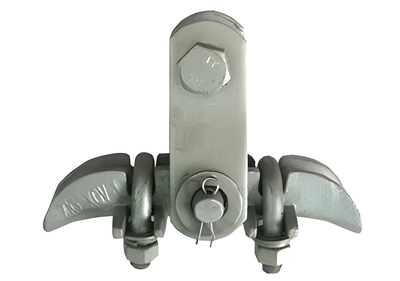

Suspension Clamps (trunnion Type)

The styling products often used in overhang clamps now retain the U-bolt style (usually called the boat clamp), which is composed

of the hanger U-bolt, the clamp hull made of malleable cast iron, and the pressure plate. The other is a pre-twisted suspension

clamp. The overhang clamp is used to fix the conductor on the insulator string of the linear pole tower, or to suspend the lightning

conductor on the linear pole tower, and can also be used to support the transposition conductor on the transposition pole tower

and the fixing of the jumper of the tensile pole tower.

Divided according to the rotation axis 1, center rotation type 2, hanging type 3, upper carrying type

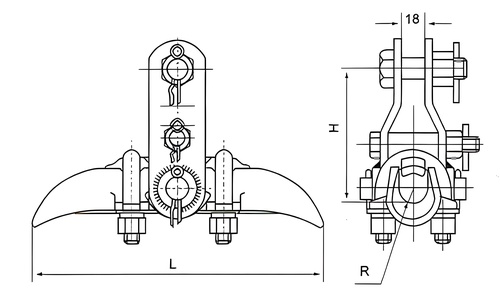

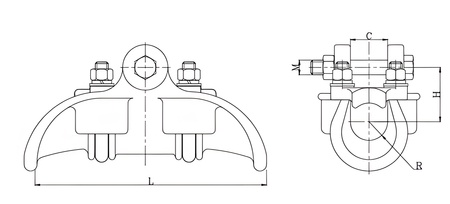

XGU Suspension clainps-trunnion type shape and reference size

Technical specifications:
