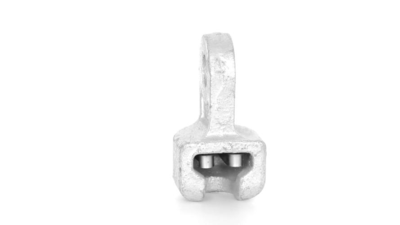

Socket-eyes & Clevis
Socket-eyes is the fitting used for connection with the ball & socket insulator.
Applications:
Transmission line system.
Technical features:
1. It uses hot-dip galvanizing to prevent corrosion;
2. It has a high failing load.
Advantages:
1. It has no direction and can be turned;
2. It is easy to load and unload.
Technical specifications:
Model | Dimensions(mm) | Failure load (kN) | Weight (kg) |
b | B | A | d | H |
W-7A | 16 | 19.2 | 34.5 | 20 | 70 | 70 | 0.8 |
W-7B | 16 | 19.2 | 34.5 | 20 | 115 | 70 | 0.9 |
W-10 | 18 | 19.2 | 34.5 | 24 | 85 | 100 | 1.0 |
W-12 | 32 | 19.2 | 34.5 | 24 | 90 | 120 | 1.3 |
Socket-Clevis
Socket Clevis is the fitting used for connection with the ball & socket insulator.
Applications:
Transmission line system
Technical features:
1. It uses hot-dip galvanizing to prevent corrosion;
2. It has a high failing load.
Advantages:
1. It has no direction and can be turned;
2. It is easy to load and unload.
Technical specifications:
Model
| Dimensions (mm) | UTS (kN) | IEC coupling |
C | h | d | b |
W-7TG | 19.2 | 70 | 18 | 16 | 70 | 16 |
W-10TG | 19.2 | 70 | 18 | 16 | 100 | 16 |
W-12TG | 19.2 | 70 | 18 | 16 | 120 | 16 |
W-16TG | 23 | 80 | 22 | 18 | 160 | 20 |
W-21TG | 23 | 80 | 22 | 18 | 210 | 20 |
