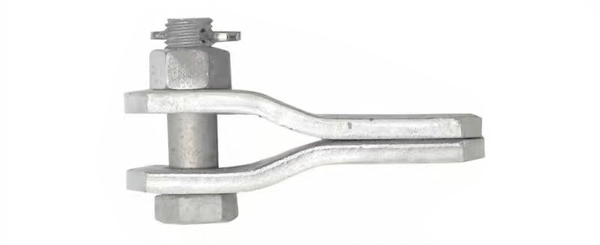

PS Type clevis - Hanford Electric

PS type clevis are used for the transition connection between double plates and single plates, as well as the connection between slot type insulator tension strings and tension clamps. The extension of the hanging bracket for hanging the suspension hammer also uses PS type clevis.

Material:

Link: Steel, Hot Dip Galvanized；

Hardware: Steel, Hot Dip Galvanized；

Cotter Key: Stainless Steel；

PS-Clevis HE_1.png

Technical specifications:

Model	Dimensions(mm)					Failure load (kN)	Weight (kg)
Model	C	b	M	h	Ø	Failure load (kN)	Weight (kg)
PS-7	18	16	16	90	20	70	0.58
PS-10	20	18	18	90	20	100	0.80
PS-12	22	20	22	95	24	120	1.42
PS-16	26	24	24	155	26	160	2.70
PS-30	38	34	36	140	39	300	5.30

——————————————————————————————————————————————————
