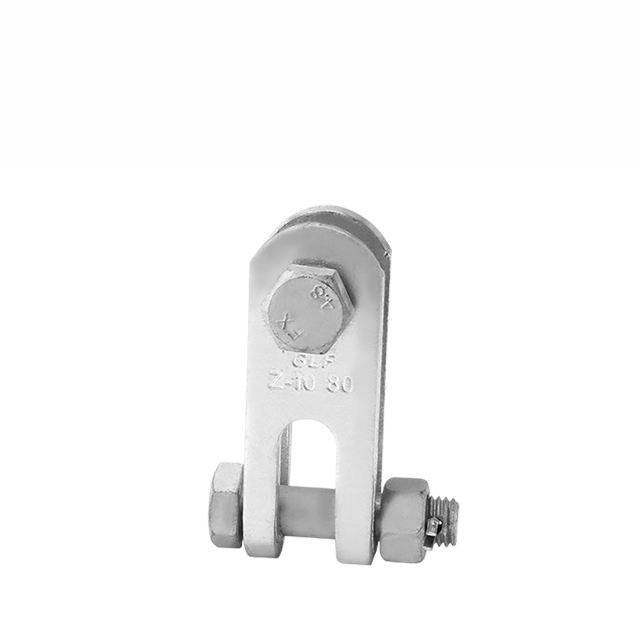

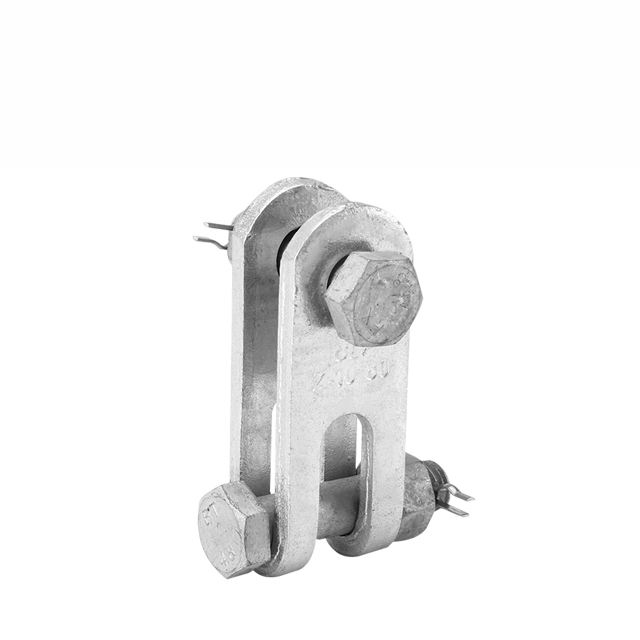

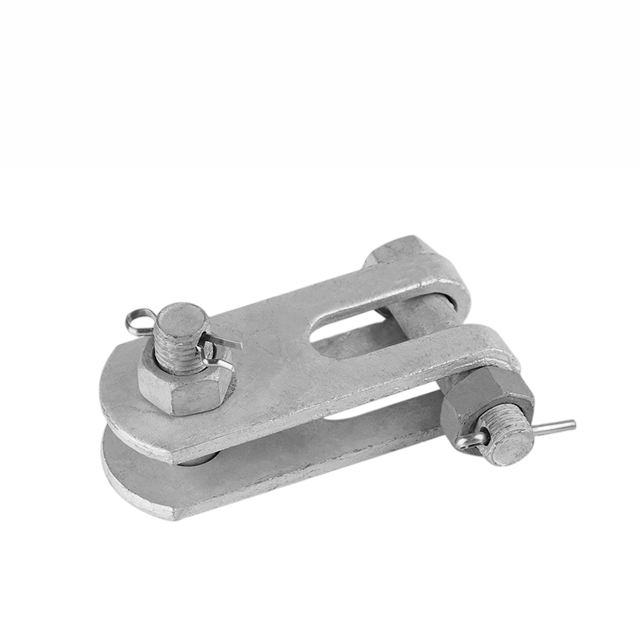

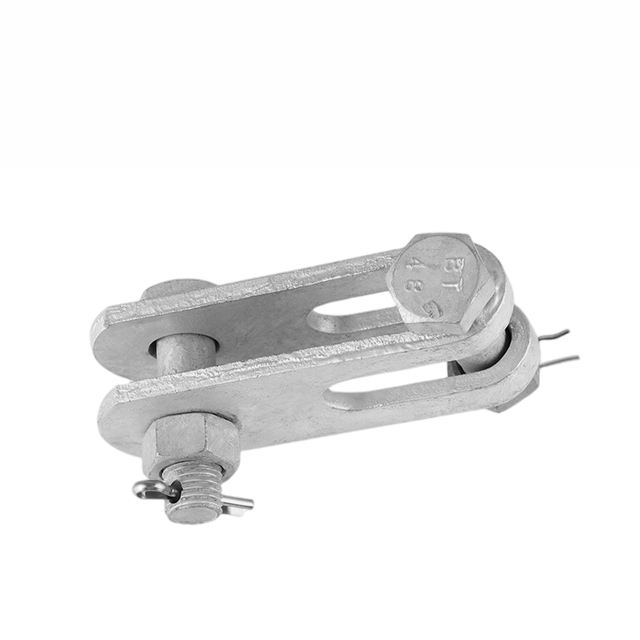

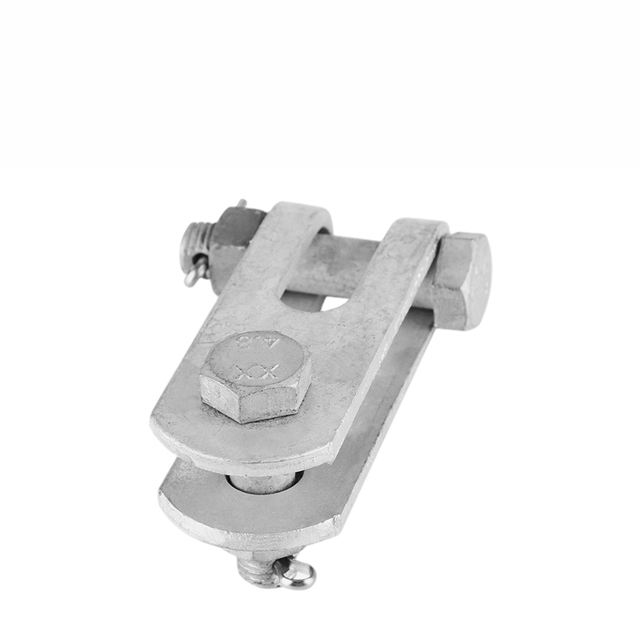

Z Type Clevis
Durable Z & ZS type clevises are one kind of turning-connected fittings that can change the connected direction. As the two
connected ends of rod form right angle, they are of flexible alternation & strong adaptability. They are made up of medium-thick
steel plate combined with the technics of punching & bending. Based on their structure character, Z & ZS type clevises can be
processed by steel plate while those items with considerable failure load shall be produced by ductile iron or casting steel.
Connection method:
Use pins or bolts to connect with other products;
use and application range:
Used for the connection of overhead line metal fittings.
Executive standard:
Meet the technical requirements of DL/T 759 and conform to IEC 61466, IEC 61284 AND BS 3288 standard request.
Technical specifications
Type | Dimensions(mm) | Failure load (kN) | Weight (kg) |
C1 | C2 | M | H |
Z-7 | 18 | 18 | 16 | 60 | 70 | 0.6 |
Z-7B | 20 | 18 | 16 | 80 | 70 | 0.7 |
Z-10 | 20 | 20 | 18 | 70 | 100 | 0.8 |
Z-10B | 20 | 20 | 18 | 80 | 100 | 0.9 |
Z-12 | 24 | 24 | 22 | 80 | 120 | 1.3 |
Z-16 | 26 | 26 | 24 | 90 | 160 | 2.5 |
Z-16C1 | 26 | 26 | 24 | 140 | 160 | 3.2 |
Z-16C2 | 26 | 26 | 24 | 170 | 160 | 3.8 |
Z-21 | 30 | 30 | 27 | 120 | 210 | 3.5 |
Z-25 | 34 | 34 | 30 | 120 | 250 | 3.8 |
Z-21S | 24 | 26 | 24 | 190 | 210 | 2.0 |
Z-25S | 28 | 28 | 27 | 110 | 250 | 3.5 |
Material: Stainless Steel, Hot Dip Galvanized Steel
