Drop-out Fuse Cutouts
Parameters
Item Use: Dropout fuse cutout is the most commonly used short-circuit protection switch for 10kV distribution line branch line and distribution transformer.
Material: Silicone Rubber, Porcelaine
Brand: HE
Detail

DROPOUT FUSE CUTOUT

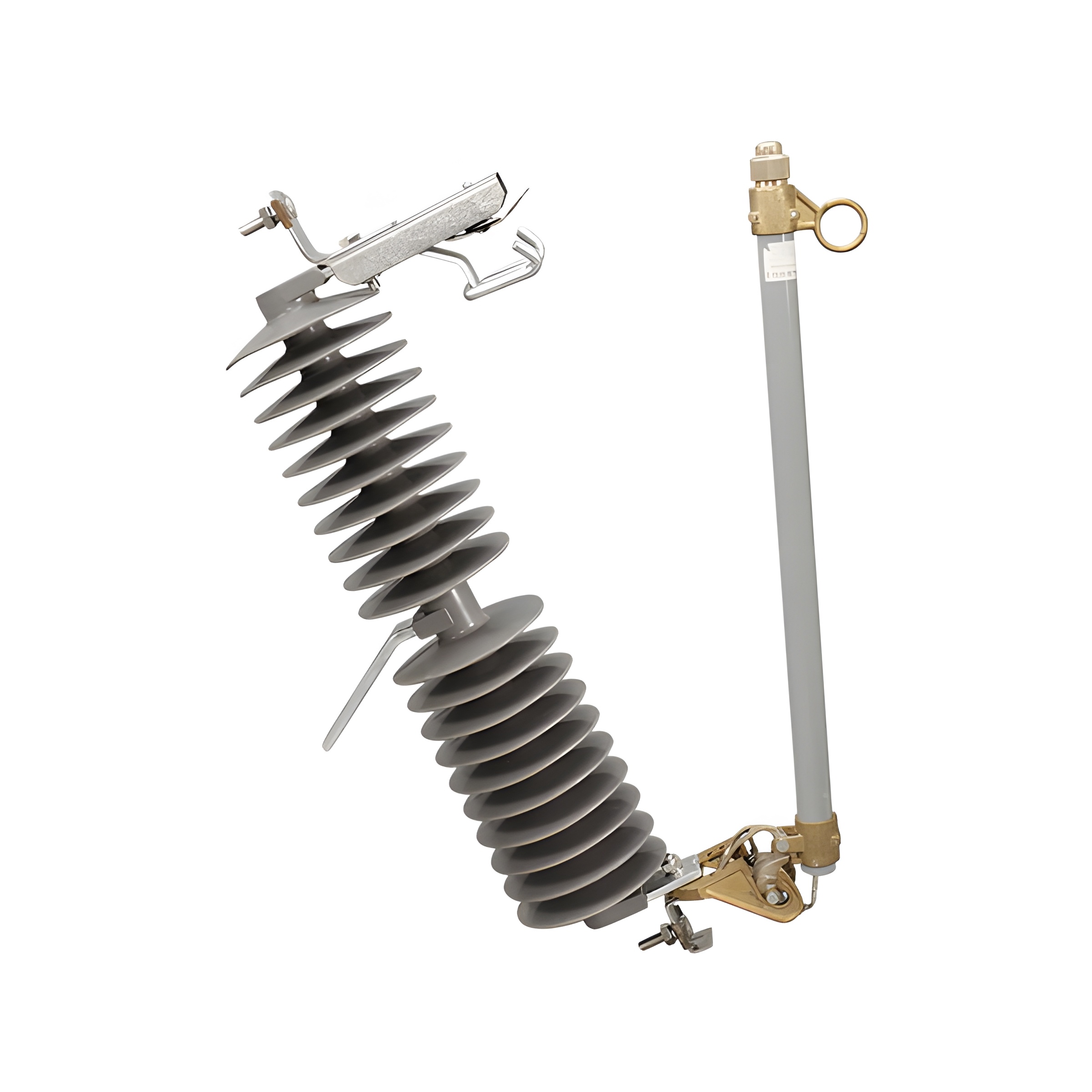

Composite Insulators


Use

In electrical distribution, a fuse cutout or cut-out fuse is a combination of a fuse and a switch, used in primary overhead feeder

lines and taps to protect distribution transformers from current surges and overloads. An overcurrent caused by a fault in the

transformer or customer circuit will cause the fuse to melt,disconnecting the transformer from the line.

It can also be opened manually by utility linemen standing on the ground and using a long insulating stick called a "hot stick".



Technical specifications

Dropout fuse -6.png

Type

Rated

voltage

(KV)

Rated

current

(A)

Breaking

current

(A)

Impulse   voltage

(BIL)

Power frequency

withstand   voltage

(kV)

Leakage distance

(MM)

Weight

(KG)

FSC1-12

12-15

100

10000

110

40

250

3.8

200

12000

FSC1-15

15-27

100

10000

125

45

340

4.3

200

12000

FSC1-24

24-27

100

10000

150

65

530

4.5

200

12000

FSC1-33

33-36

100

10000

170

70

720

5

200

12000

900

8




DROPOUT FUSE CUTOUT

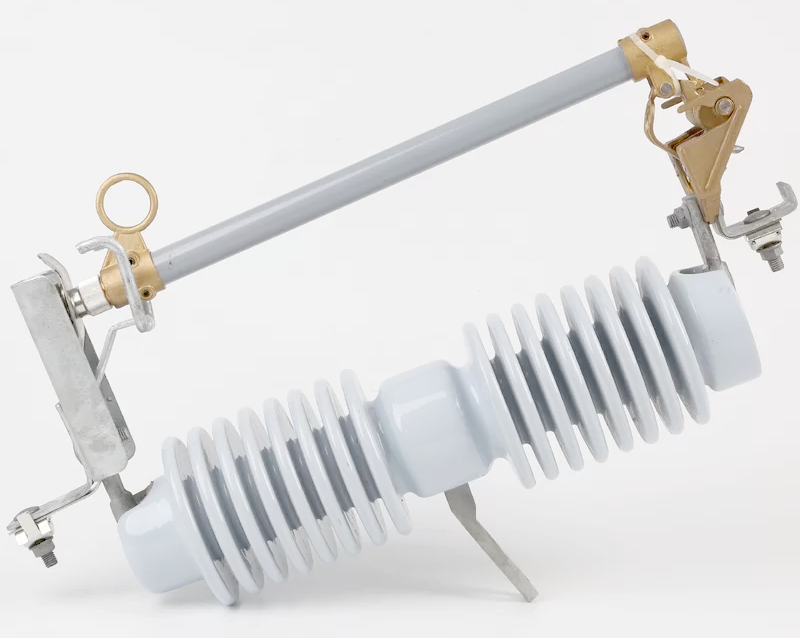

Porcelain Insulators



HTB1eqnJwljTBKNjSZFwq6AG4XXap - 1.jpg



Use

In electrical distribution, a fuse cutout or cut-out fuse is a combination of a fuse and a switch, used in primary overhead feeder

lines and taps to protect distribution transformers from current surges and overloads. An overcurrent caused by a fault in the

transformer or customer circuit will cause the fuse to melt,disconnecting the transformer from the line.

It can also be opened manually by utility linemen standing on the ground and using a long insulating stick called a "hot stick".


Technical specifications

Dropout fuse -p3.png

Type

Rated

voltage

(KV)

Rated

current

(A)

Breaking

current

(A)

Impulse

voltage

(BIL)

Power frequency

withstand voltage

(kV)

Leakage

distance

(MM)

Weight

(KG)

FSC1-12

12-15

100

6300

110

42

250

6.5

200

10000

FSC1-15

15-27

100

8000

125

45

340

7.5

200

12500

FSC1-24

24-27

100

8000

150

65

530

12

200

12500

FSC1-33

33-36

100

10000

170

70

720

15

200

12500








——————————————————————————————————————————————————
