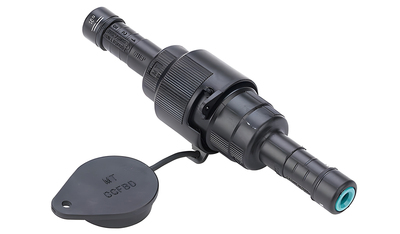

Pre-insulated crimping fuse holder joint

MJPF with fuse link fiber optic pre insulated cable protection sleeve electrical sleeves for LV ABC lines with insulated conductors,

suitable for insulated aluminum conductors in installation of service line system, street lightning, buildings, up to 1 KV.

The fuse can be Installed on service line and allows disconnection under load up to 63 A.

Fuse cartridges from 2 to 63 A. Connector is made of weather and UV resistant plastic, waterproofed.

Advantages:

• Connection/disconnection up to 60 A load.

• Dielectric resistance into water: 6 kV

• Crimping connection.

Material：

Brass (silver plating) Aluninium

Technical specification:

CCFBD :            • EN 50483-4

                         • NF C 33-020

                         • NF C 33-020

Fusible / Fuse : • NF C 63-210

                         • IEC 269-2
