Earth Rods
Earth rod is a rod composed of elements that conduct electricity used in earthing systems. Any incidence of electrical surge can pose
dangers of electrocution, especially during lightning. To prevent this, Earth Rod is installed into the ground so that any excess current
drifts towards the earth.
The earthing rods and accessories are important safety components and should be installed with great caution. These are essentially
electrodes made of metal and are vulnerable to corrosion. That’s why the earth rods are made corrosion-resistant so they can be kept
concealed in the ground for a long time.

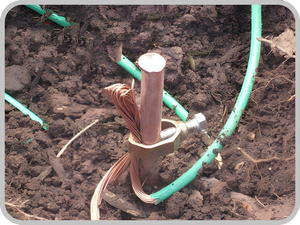

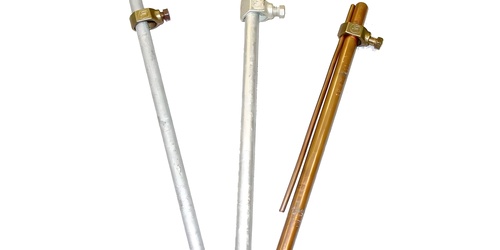

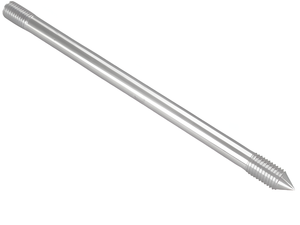

Ø 16 mm galvanized steel rod
Composition:
• Resistance superior to 70 daN / mm². Galvanization : middle thiclness 85 µ.
• CAG 16 : galvanized steel connector. Capacity : 16 to 50 mm²
• PAG ... C : Set rod (PAG) + connector (CAG 16).
Technical specification:
• EN ISO 1461
Designation | Rod + Connector | Ø (m) | Length (m) |
PAG 1610 | PAG 1610 C | 16 | 1 |
PAG 1615 | PAG 1615C | 16 | 1.5 |
254 µ copper claded steel rods
Composition:
• Resistance superior to 70 daN / mm².
• Electrolytic copper claded :
– Rod Ø 16 mm (14,3 mm effective) (ép. 250 µ mini).
• Bronze connectors :
– CBM 3450 : for rods Ø 16 mm (14,3). Capacity 10 à 50 mm².
• PC 25 ... C : set rod (PC 25) + connector type CBM.
Technical specification:
• ASTM 510-77
Designation | Rod + Connector | Ø (m) | Length (m) |
PC 25-1610 | PC 25-1610 C | 16 (14,3) | 1 |
PC 25-1615 | PC 25-1615 C | 16 (14,3) | 1.5 |
Earth connectors

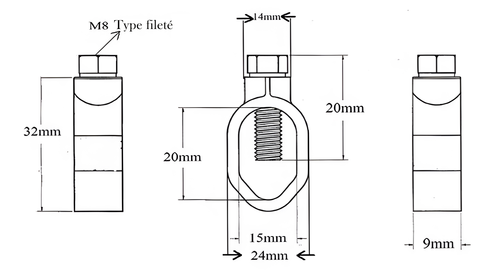

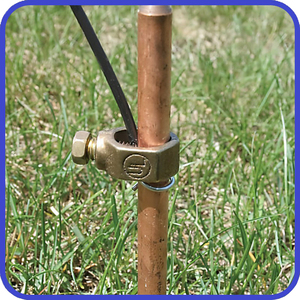

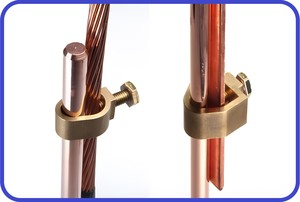

Earth Clamps that are a spring or screw down type earth connectors for jointing earth rod to earth tape, earth rod to cable
(stranded copper conductor), tape to tape and rebar clamps for earthing and lightning protection systems.
Technical specification:
Designation | Rod Ø (mm) | Material | Cable area (mm2) |
CAG 16 | 16 | Galvanized steel | 16 - 50 |
CBM | 16 / 20 | Bronze | 16 - 95 |
CBM 3450 | 16 / 14,3 |
| 10 - 50 |
CB 14 | 14,3 |
| 16 - 95 |
CB 16 | 16 | Battery type lug - Bronze | 16 - 95 |
CB 17 | 17,3 |
| 16 - 95 |
CB 20 | 20 |
| 16 - 95 |
Stainless Steel Screws 14,3 / 17,3 | Cu alloy - Screw inoxydable | 50 - 95 |
Application:
