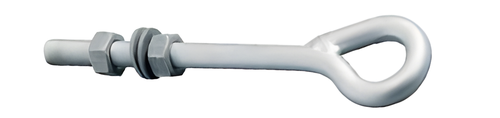

Eye bolts
Eye Bolts are bolts with a closed loop on one end and machine screw threads on the other end. Eye Bolts are commonly
used to attach cables and chains to hanging objects such as wires and pipes.
Material:
• Hot-dip galvanized steel.

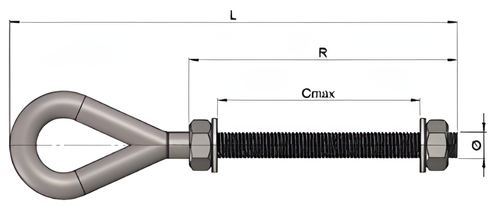

Technical specification:
Designation | Ø (mm) | L (mm) | R (mm) | C max. (mm) | Tensile strength （daN） |
GCR 16/160-G | M16 | 160 | 70 | 38 | 300 |
GCR 16/200-G | 200 | 100 | 68 |
GCR 16/250-G | 250 | 150 | 118 |
GCR 16/255-G | 255 | 100 | 68 |
GCR 16/295-G | 295 | 140 | 108 |
GCR 16/315-G | 315 | 160 | 128 |
GCR 16/355-G | 355 | 200 | 168 |

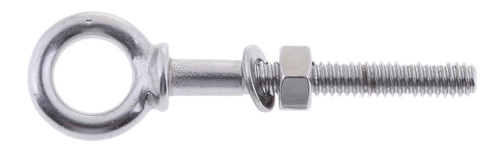

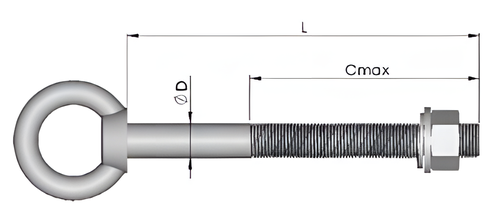

Drop forged eye bolts
Technical specification:
Designation
| D x L (mm) | C max. (mm) |
GCC 16/40-G | M16 x 40 | 25 |
GCC 16/100-G | M16 x 100 | 80 |
GCC 16/160-G | M16 x 160 | 140 |
GCC 16/200-G | M16 x 200 | 180 |
GCC 16/250-G | M16 x 250 | 230 |
GCC 16/340-G | M16 x 340 | 320 |

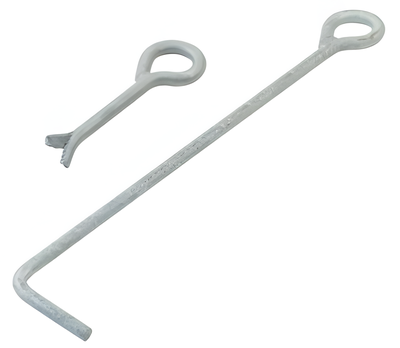

Rods
Use:
• Guying clamp
Material:
• Hot-dip galvanized steel.
Technical specification:
Designation | Ø (mm) | L (mm) | Tensile strength (daN) |
GCE 16/200-G | M16 | 200 | 3.000 |
GCC 16/220-G | 220 |
GCC 16/595-G | 595 |
GCC 16/1075-G | 1075 |
GCC 16/1550-G | 1550 |
