Thermoplastic supports for wall-mounted service lines
Composition:
• Support made of a thermoplastic material (high resistance to bad weather conditions)
allowing the optional installation of a second bundle.
• Thermoplastic strap for tying the conductors.
• Steel nail Ø 3 mm.
• A protective cap.
Technical specification:
• EN 50483-3 • NF C 33-040

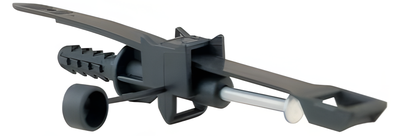

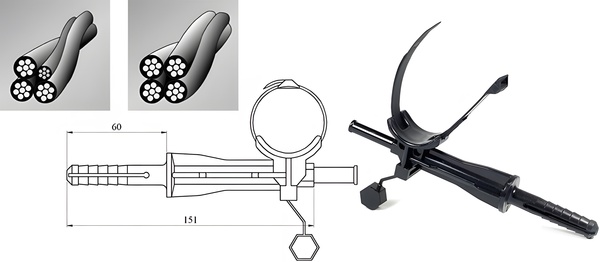

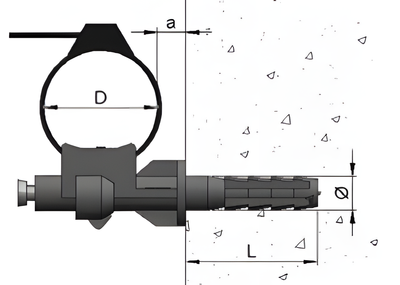

SA 10 type
Technical specification:
Designation | Strap width (mm) | Strap length (mm) | D (mm) | A (mm) | Wall drilling ØxL (mm) |
SA 10 S | Strap not included | 10 | 8x40 |
SA 10 | 9 | 130 | 25 | 10 | 8x40 |

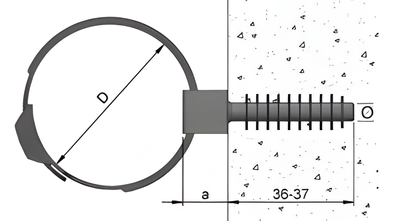

CB type
Composition:
• A hammer-in support made of thermoplastic material (high resistance to bad weather conditions).
• A thermoplastic strap for tying the conductors (not provided with the CB 8S version).
Technical specification:
• EN 50483-3 • NF C 33-040
Designation | Strap width (mm) | Strap length (mm) | D (mm) | A (mm) | Wall drilling ØxL (mm) |
CB8-S | Strap not included | 6 | 8x40 |
CB8-130 | 9 | 130 | 28 | 6 | 8x40 |
CB8-180 | 9 | 180 | 45 | 6 | 8x40 |
CB8-260 | 9 | 280 | 54 | 6 | 8x40 |
CB8-350 | 9 | 350 | 100 | 6 | 8x40 |
CB9-S | Strap not included | 13 | 8x40 |
CB9-130 | 9 | 130 | 28 | 13 | 8x40 |
CB9-180 | 9 | 180 | 45 | 13 | 8x40 |
CB9-260 | 9 | 260 | 54 | 13 | 8x40 |
CB9-350 | 9 | 350 | 100 | 13 | 8x40 |
