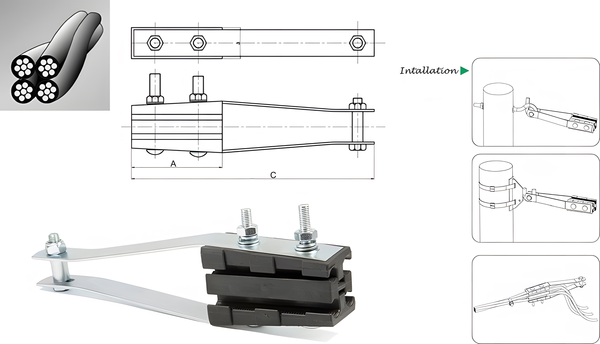

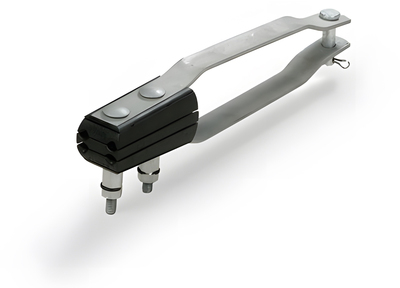

Dead-end clamps for self-supporting distribution lines
Dead ENd Clamp PA is used to tighten LV ABC without insulated conductor and has a function to receive LV ABC made
of 2 to 4 conductors from 10 to 50mm2 on the places where it is technically defined. Its design provides easy, fast and reliable
installation in all weather conditions. Dead End Clamp PA has self-adjusting plastic wedges which tighten 2 to 4 conductors of
LV ABC without insulation damage.
All parts of Dead End Clamp PA are resistant to corrosion and environmental effects. It is made of surface protected steel,
Poliamid 6.6 GF 30. Bolt M12 and self-blocking nut enable the clamp to be installed on a U stirrup or closed bracket.
Material :
• Thermoplastic (resistant to bad weather conditions) for the insulating wedges and galvanized steel for the metal parts and fastenings.
• Available in stainless steel version
Technical specification :
• DIN VDE 0211

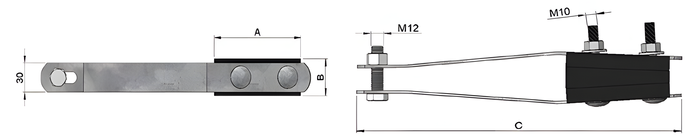

Designation | Cable section (mm²) | A (mm) | B (mm) | C (mm) |
PAT 50 | 4 x 25 / 4 x 50 | 100 | 38 | 315 |
PAT 95 | 4 x 70 / 4 x 95 | 120 | 45 | 315 |
